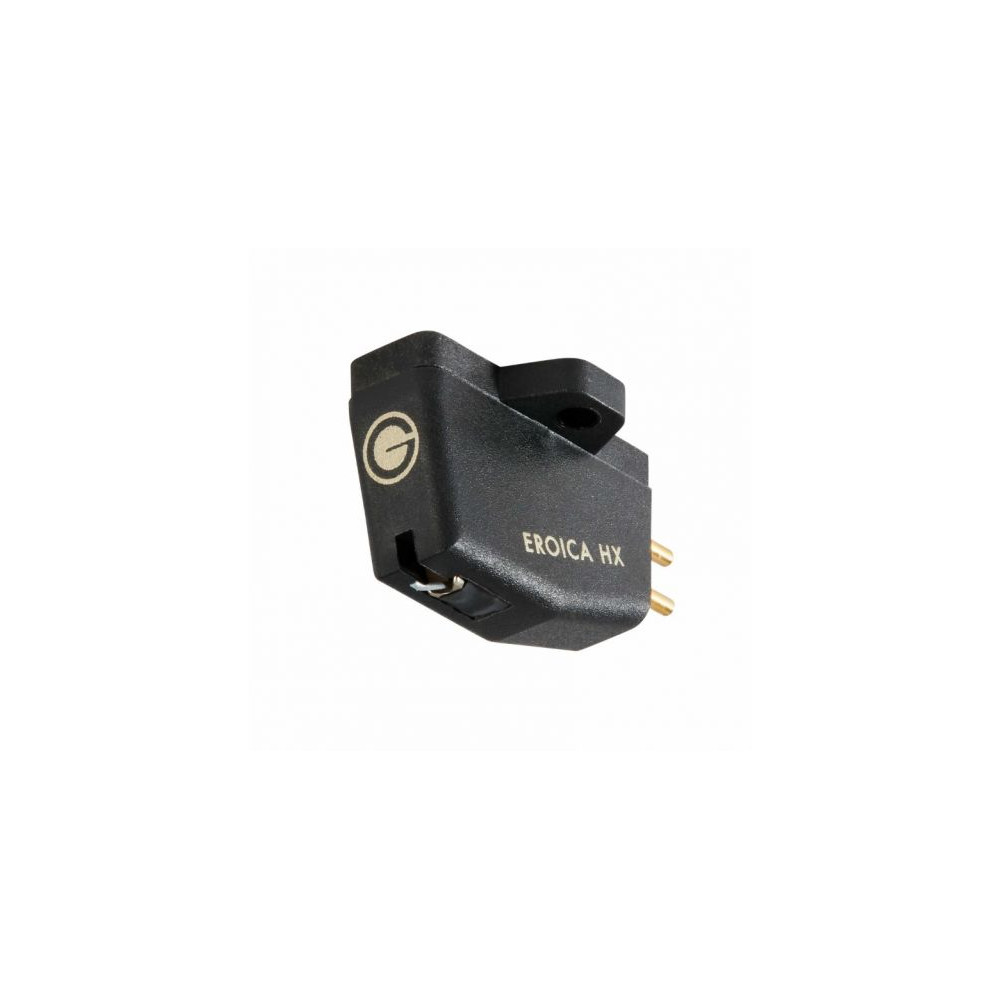

Goldring Eroica HX - MC - Pickup

Goldring, introduces the latest member of its moving coil cartridge family, the Eroica HX. Joining the award-winning LX model in the Eroica range (‘Eroica’ translates as ‘Heroic’ in Italian), this high output, high-performance cartridge makes upgrading from a moving magnet cartridge to a moving-coil model straightforward. It achieves this by delivering a stunning moving coil performance from a moving magnet input and is one of the most obvious and cost-effective upgrades you can make to your vinyl audio system.

• New, pure-iron cross-armature design for low crosstalk and reduced effective mass
• Ultra-fine, enamelled-copper windings for higher output and correct impedance matching
• Equipped with Gyger II diamond stylus that traces frequencies as high as 50kHz without distortion
• Housing made from lightweight Pocan® composite material, chosen for its anti-colouration properties



Spesifikasjoner

• Frequency Response: 20 Hz – 20 kHz ± 3 dB
• Frequency Range: 10 Hz – 50 kHz
• Channel Balance1 dB max. at 1 kHz
• Channel Separation: 25 dB min. at 1kHz
• Sensitivity: 2.5 mV ± 1dB at 5 cm/s lateral; 1 kHz
• Static Compliance: 25 mm/N
• Trackability: 85 um (@ 315 Hz)
• Equivalent tip mass: 0.4 mg
• Vertical Tracking Angle: 22 °
• Stylus Radius: Gyger II
• Stylus Type: Non-Replaceable (re-tip service available see website)
• Load Resistance: 47 kΩ
• Load Capacitance: 100 – 500 pF
• Internal Inductance: 0.13 mH
• Internal Resistance: 35 Ω
• Cartridge Mass: 5.2 g
• Cartridge Mass (inc. fixings): 6.6 g
• Fixing Centre: 12.7 mm (0.5 inch)
• Playing Weight: 1.5 - 2.0 g (1.75 g nominal)
